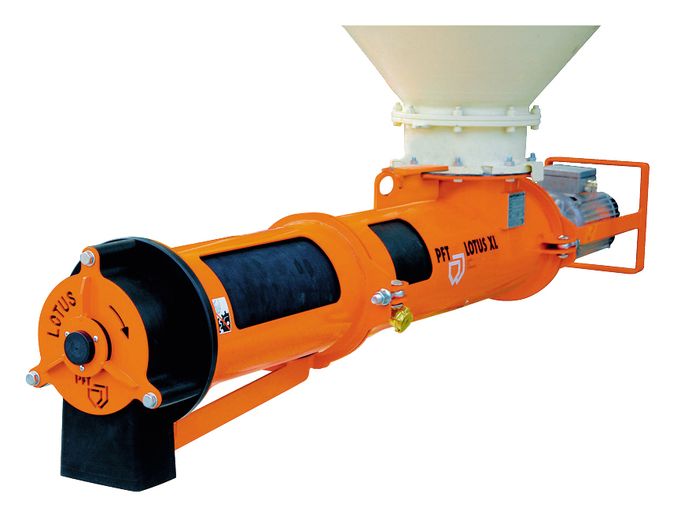

The horizontal PFT screw mixers of the LOTUS series (also called mortar mixers) continuously and fully automatically mix all ready-mix dry mortars based on lime and cement (e.g. masonry mortar, jointing mortar, levelling compounds, adhesive/reinforcing mortar). A special feature of the model is the metering and mixing shaft as a single unit without a central axis and with a rubber outlet fabricated from a single piece. The rotating dosing segment doubles the service life of the wear part. The LOTUS XL light version is a silo mixer operated with three-phase current for grain sizes up to a maximum of 8 mm. The mixing capacity of the machine can be increased up to 90 l/min with special dosing shafts.
20423920
Extension cable 5 x 4 mm², RED 5-32 A – 25 m (400 V/3 Ph)
20423900
Extension cable 5 x 4 mm², RED 5-32 A – 50 m (400 V/3 Ph)
00109440
Extension cable 3 x 4 mm², BLU 3-32 A – 25 m (230 V/1 Ph)
Note: Adapter plug CEE coupling | safety socket necessary. Only for "LOTUS XL FC-230V"
20423400
Extension cable 3 x 2.5 mm², BLA 2-16 A – 25 m (230 V/1 Ph)
00109655
Adapter plug CEE coupling | safety socket
20212100
Water hose/air hose DN19 (3/4") Geka | Geka – 40 m
Water pump as suction pump
AV 1000 standalone, 230 V, 1 Ph, 50 Hz, 0.6 kW
with integrated pressure switch-off and flow meter
Note: Free-standing and independent of machine controls, suction strainer with filter screen required
Suction strainer with filter screen
Water hose/air hose DN12 (1/2") Geka | Geka – 5 m
Spray nozzle DN19 (3/4") Geka
Dosing segment 60 l/min
Dosing segment 90 l/min
