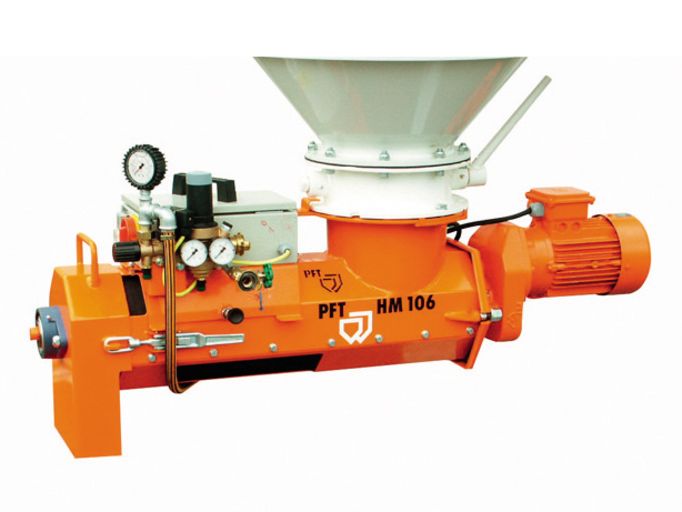

HM 106 The compact screw mixer with small dimensions

PFT HM 106

The horizontal PFT screw mixers of the HM series - also called mortar mixers - continuously and fully automatically mix all ready-mix dry mortars based on cement (e.g. masonry mortar, jointing mortar, levelling compounds, adhesive/reinforcing mortar) to produce an application-ready material. All-round qualities, easy to work with and maintenance-friendly belt drive characterise the machine. Depending on the series version, screw mixers can be used either with bagged goods only, or optionally with bagged or silo goods or only with silo goods. The HM 106 FC-230V version is a silo mixer. Due to its compact size, it can remain flange-mounted during transport. The HM 106 was specially developed for use with small containers. Mortar outlet and control unit are removable, the rubber mixing tube is removable. Also available as 400 V version

Details

  • Removable mortar outlet
  • Perfect interaction between screw mixer and delivery pump
  • Removable control unit
  • Detachable rubber mixing tube
  • Convenient transport flanged to silo/container
  • Easy mounting on silo/container by means of Ø 250 mm connection flange
  • Minimal maintenance and cleaning expenses
  • Consistent mixing quality
  • Simple operation
  • Silo mixer
  • Also available as 400 V version

The screw mixer was specially developed for use with small containers.
The compact design means that the mixer can remain flange-mounted to the silo/container during transport.

  • Adhesive and reinforcing mortar
  • Masonry mortar
  • Jointing mortar
  • Plastering mortar
  • Screed mortar
  • Levelling compounds
  • Finishing coat

Downloads

Please find further downloads and languages here.

Description Edition Document type
BAL185_en General safety instructions Horizontal screw mixer Dec. 2021 Safety notice
PDF

Technical data

  • HM 106 OCTAGON<br>for level sensor<br>400 V, 3 Ph, 50 Hz Produktbild

    HM 106 OCTAGON
    for level sensor
    400 V, 3 Ph, 50 Hz

    Part no. :
    00047323
    Performance :

    Mixing capacity:
    20 – 50 l/min

    Maximum grain size:
    6 mm

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 3 kW
    Control voltage: 42 V

    Drive motor:
    3 kW, 280 rpm

    Mixing tube:
    Rubber mixing tube

    Pedestal:
    Not included

    Wheels:
    Not included

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/stop and automatic control via level sensor and external vibrator

    Dimensions :

    Length/Width/Height:
    1,300/210/500 mm

    Total weight:
    86 kg

    Basic equipment package :

    Water flow meter:
    With pressure gauge

    Dosing shaft:
    20 l/min

    Pressure booster pump:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Silo/container handover:
    Connecting flange Ø 250 mm

    Show more
  • HM 106 OCTAGON<br>400 V, 3 Ph, 50 Hz<br><br> Produktbild

    HM 106 OCTAGON
    400 V, 3 Ph, 50 Hz

    Part no. :
    00047324
    Performance :

    Mixing capacity:
    20 – 50 l/min

    Maximum grain size:
    6 mm

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 3 kW

    Drive motor:
    3 kW, 280 rpm

    Mixing tube:
    Rubber mixing tube

    Pedestal:
    Not included

    Wheels:
    Not included

    Water connection:
    Geka DN12 (1/2") – 2.5 bar working pressure

    Operation and control:
    Start/stop and automatic control via level sensor and external vibrator

    Dimensions :

    Length/Width/Height:
    1,300/210/500 mm

    Total weight:
    82 kg

    Basic equipment package :

    Water flow meter:
    With pressure gauge

    Dosing shaft:
    20 l/min

    Pressure booster pump:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Silo/container handover:
    Connecting flange Ø 250 mm

    Show more

Equipment / Accessories

Equipment

  • HM 106 OCTAGON<br>for level sensor<br>400 V, 3 Ph, 50 Hz Produktbild

    HM 106 OCTAGON
    for level sensor
    400 V, 3 Ph, 50 Hz

    Part no. :
    00047323
    Basic equipment :

    • Drive motor 3 kW, 280 rpm
    • Silo mixer
    • Rubber mixing tube
    • Control voltage 42 V for maximum operational reliability
    • Water connection DN12 (1/2") –
      Required working pressure 2.5 bar
    • Minimal maintenance and cleaning expenses
    • Removable mortar outlet
    • Control box:
      - Automatic phase inverter
      - External motor protection switch
    • Water manifold cabinet:
      - Water flow meter
      - Pressure reducer
      - Fine control valve to set the exact amount of water
    • Connections in the control box:
      BLU 2-16 | WHI 3-16 | RED 4-16
    • Connecting flange Ø 250 mm
    • Phase sequence indicator

    Basic equipment package :

    • Water flow meter with manometer
    • Dosing shaft 20l/min

    Show more
  • HM 106 OCTAGON<br>400 V, 3 Ph, 50 Hz<br><br> Produktbild

    HM 106 OCTAGON
    400 V, 3 Ph, 50 Hz

    Part no. :
    00047324
    Basic equipment :

    • Drive motor 3 kW, 292 rpm
    • Silo mixer
    • Rubber mixing tube
    • Control voltage 42 V for maximum operational reliability
    • Water connection DN12 (1/2") –
      Required working pressure 2.5 bar
    • Minimal maintenance and cleaning expenses
    • Removable mortar outlet
    • Control box:
      - Automatic phase inverter
      - External motor protection switch
    • Water manifold cabinet:
      - Water flow meter
      - Pressure reducer
      - Fine control valve to set the exact amount of water
    • Connection option for a level sensor for automatic level monitoring, e.g. of a downstream pump
    • Connections in the control box:
      BLU 2-16 | RED 4-16 | BLA 4-16
    • Connecting flange Ø 250 mm

    Basic equipment package :

    • Water flow meter with manometer
    • Dosing shaft 20 l/min

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423350

Description

Extension cable 5 x 2.5 mm², RED 5-16 A – 50 m (400 V, 3 Ph)

20423350 Bild
Part no.

20423360

Description

Extension cable 5 x 2.5 mm², RED 5-16 A – 25 m (400 V, 3 Ph)

20423360 Bild
Part no.

20212100

Description

Water hose/air hose DN19 Geka | Geka - 40 m

20212100 Bild

Useful extras

Part no.
Description

20211100

Water hose/air hose DN12 Geka | Geka - 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00493686

Water pump as standalone suction pump AV 1000
with integrated pressure switch-off and flow meter,
230 V, 1 Ph, 50 Hz, 0.6 kW

00493686 Bild
00094975

Dosing shaft 20 l/min for HM 106

00094975 Bild
00430723

Mixing shaft HM 106

00430723 Bild
00001623

Level sensor with control cable - 1.5 m
Note: Applies only to version "HM 106 prepared for level sensor"

00001623 Bild
00002466
