Rotor/stator A 2-2.5 The fine filler pro

Rotor/stator A 2-2.5
  • Rotor/stator A 2-2.5 L mf

The heart of a mixing and delivery pump is the pump unit, also known as the rotor/stator. This is where the required pressure is built up in order to deliver the material to the processing location. Depending on the size, different conveying outputs can be provided. The last digit of the pump designation denotes the number of pressure stages; a working pressure of 10 bar can be built up for each stage. If these values are no longer achieved, the unit is worn out and should be replaced.

  • Maintenance-free

Details

Maintenance-free

  • Pressure stability
    Deformation in the rubber leads to higher wear and reduces pressure stability more quickly,
    with the holding pressure in the chambers, backflow occurs in the stator.
  • Operating temperature
    Friction causes heat and this has a negative impact on the rubber of the stator.
    It is therefore important to reduce the heat in the stator by using a suitable rubber compound and through fast heat dissipation.
    Irregular rubber thicknesses prevent fast heat transmission.
  • Pre-stress and pump's operating range
    Maintenance-free stator "Ready-to-go" – pre-stressed for immediate use.

A 2-2.5 L mf
Machine model: RITMO L plus

  • Fine filler, mineral
  • Fine filler, pasty

A 2-2.5 L mf
Machine model: RITMO M, RITMO L

  • Fine filler, mineral
  • Fine filler, pasty

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS138_en PFT Rotor/Stator programme Nov. 2018 Brochure
PDF

Technical data

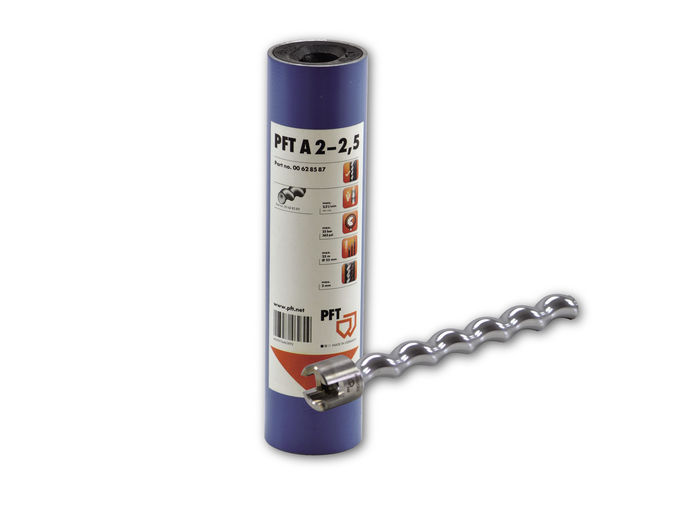

  • A 2-2.5 Produktbild

    A 2-2.5

    Stator A 2-2.5
    Part no. 00628587

    Rotor without tang
    Part no. 00628589

    for machine model:
    RITMO L plus

    Direction of rotation:
    Clockwise rotating

    Colour code:
    Distant blue

    Working pressure
    20 bar

    Stator length / Ø:
    160 mm / 40 mm

    Max. grain size:
    2 mm

    Output at 400/200 rpm:
    2 | 1 l/min

    Connection type:
    A

    Rubber hardness:
    Hard

    Delivery range:
    up to 20 m with fillers (RITMO L plus powercoat)

    Accessories:
    Tie rod of A/B-pump 190 mm
    Part no. 00094144

    Show more

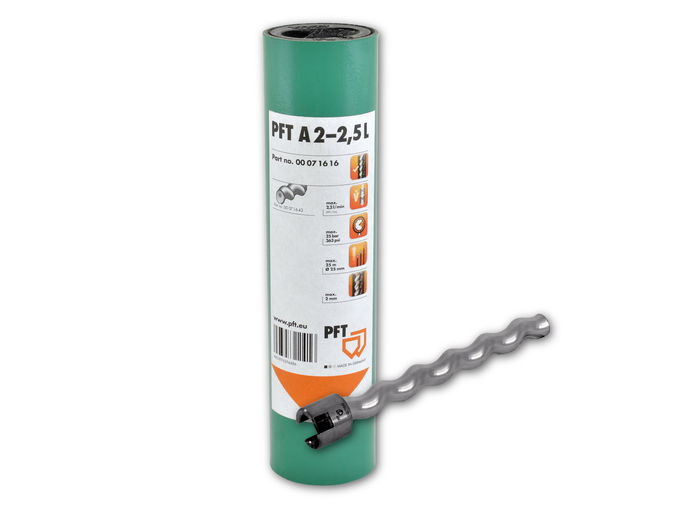

  • A 2-2.5 L mf   Produktbild

    A 2-2.5 L mf

    Stator A 2-2.5 L mf
    Part no. 00071616

    Rotor without tang
    Part no. 00071643

    for machine model:
    RITMO M, RITMO L

    Direction of rotation:
    Anti-clockwise rotation

    Colour code:
    Patina green

    Working pressure
    20 bar

    Stator length / Ø:
    160 mm / 40 mm

    Max. grain size:
    2 mm

    Output at 400/200 rpm:
    2 | 1 l/min

    Connection type:
    A

    Rubber hardness:
    Hard

    Conveying distance:
    up to 20 m with mineral fillers

    Accessories:
    Tie rod of A/B-pump 190 mm
    Part no. 00094144

    Show more
