Knauf PFT - SILOMAT trans plus conveying system

SILOMAT trans plus The compact and transport-friendly conveying system

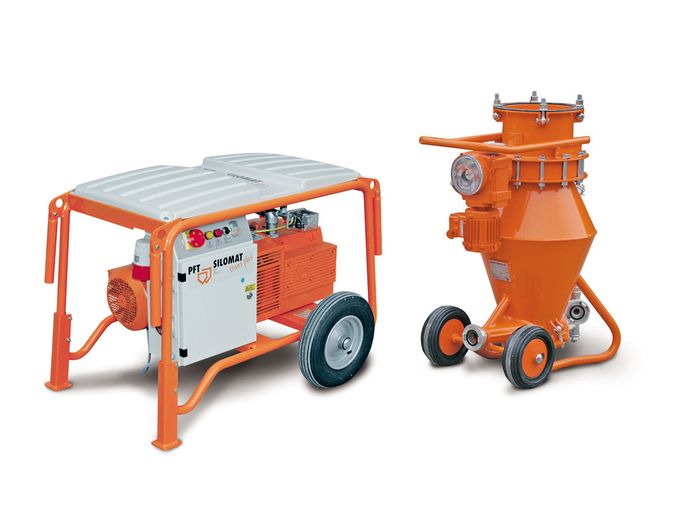

PFT's pneumatic SILOMAT conveying equipment is designed for fully automatic, dust-free material transport of the ready-mix dry mortar from the silo/container to the processing site. Various models are available to cover a wide range of requirements. The high-performance PFT SILOMAT trans plus is optionally available as a system for gravity-fed or pressure silos. Depending on the design, the conveying distance is well over a hundred metres. When it comes to handling and transport, the SILOMAT trans plus is characterised by many auxiliary functions, such as integrated crane transport lugs and fold-out carrying handles. The conveying pot or squeezer valve-conveying block can be connected to any container / silo in a few simple steps. The SILOMAT trans plus has a powerful rotary compressor, which has an output of 5.5 or 7.5 kW and is available portable or on wheels.

Details

Fluidiser: Increases and ensures the material flow, the tank is emptied almost completely
- Maintenance-free
- Resistant to humidity
- Retrofittable
- Performance increase of up to 30 %
Compressor as dry running water meter, no oil change required
Rotary compressor available in wheeled and portable versions
Crane transport lugs and fold-out carrying handles
Suitable for container/silo discharge flange Ø 250 mm
Shut-off flap with actuator and hand wheel
Easily replaceable gaskets
Bypass: Manually controllable for stiff material and longer conveying distances
High machine running times with high level of operating safety
Easy replacement of wear parts

Fully automatic and dust-free, the SILOMAT trans plus conveys dry mortar.
With a few simple steps, the system can be set up and transported with ease.

Machine gypsum plaster
Lime/gypsum plaster
Cement plaster
Lime plaster
Masonry mortar
Bulk goods
Aggregates
Powder material

Downloads

Please find further downloads and languages here.

Description	Edition	Document type
DS54_en PFT SILOMAT trans plus 105	Jun. 2021	Brochure	PDF
DS113_en PFT SILOMAT trans plus 145	Jun. 2021	Brochure	PDF
BAL184_en General safety instructions Conveying systems	Dec. 2021	Safety notice	PDF
ET01 SILOMAT trans plus	Oct. 2024	Spare parts list	PDF
BAL23_en PFT SILOMAT trans plus / bag 105/145	Nov. 2024	Operating instructions	PDF

Technical data

SILOMAT trans plus 105 - portable
400 V, 3 Ph, 50 Hz
Part no. :
00124365
Performance :
Conveying distance:
100 m
Conveying output:
20 kg/min
Basic equipment :
Power connection:
400 V, 3 Ph, 50 Hz, 5.5 kW
Fuse:
32 A
construction site distributor with 30 mA earth leakage circuit breaker required
Connection cable (not included):
5 x 4 mm² – RED 5-32 A
Compressor:
Power: 5.5 kW
Max. pressure: 2.5 bar
Air quantity: 105 Nm³/h
Dimensions :
Contents of conveying pot/block:
55 litres
Length/Width/Height:
1,100/635/720 mm
Height of conveying pot:
980 mm
Weight of conveying pot:
87 kg
Weight of rotary compressor including carrier element:
188 kg
Total weight:
275 kg
Show more
SILOMAT trans plus 145 - portable
400 V, 3 Ph, 50 Hz
Part no. :
00689524
Performance :
Conveying distance:
140 m
Conveying output:
20 kg/min
Basic equipment :
Power connection:
400 V, 3 Ph, 50 Hz, 7.5 kW
Fuse:
32 A
construction site distributor with 30 mA earth leakage circuit breaker required
Connection cable (not included):
5 x 4 mm² – RED 5-32 A
Compressor:
Power: 7.5 kW
Max. pressure: 2.5 bar
Air quantity: 145 Nm³/h
Dimensions :
Contents of conveying pot/block:
55 litres
Length/Width/Height:
1,100/635/720 mm
Height of conveying pot:
980 mm
Weight of conveying pot:
83 kg
Weight of rotary compressor including carrier element:
190 kg
Total weight:
285 kg
Show more
SILOMAT trans plus 105 - rollable
400 V, 3 Ph, 50 Hz
Part no. :
00124366
Performance :
Conveying distance:
100 m
Conveying output:
20 kg/min
Basic equipment :
Power connection:
400 V, 3 Ph, 50 Hz, 5.5 kW
Fuse:
32 A
construction site distributor with 30 mA earth leakage circuit breaker required
Connection cable (not included):
5 x 4 mm² – RED 5-32 A
Compressor:
Power: 5.5 kW
Max. pressure: 2.5 bar
Air quantity: 105 Nm³/h
Dimensions :
Contents of conveying pot/block:
55 litres
Length/Width/Height:
1,100/635/720 mm
Height of conveying pot:
980 mm
Weight of conveying pot:
87 kg
Weight of rotary compressor including carrier element:
188 kg
Total weight:
275 kg
Show more
SILOMAT trans plus 145 - rollable
400 V, 3 Ph, 50 Hz
Part no. :
00124358
Performance :
Conveying distance:
140 m
Conveying output:
20 kg/min
Basic equipment :
Power connection:
400 V, 3 Ph, 50 Hz, 7.5 kW
Fuse:
32 A
construction site distributor with 30 mA earth leakage circuit breaker required
Connection cable (not included):
5 x 4 mm² – RED 5-32 A
Compressor:
Power: 7.5 kW
Max. pressure: 2.5 bar
Air quantity: 145 Nm³/h
Dimensions :
Contents of conveying pot/block:
55 litres
Length/Width/Height:
1,100/635/720 mm
Height of conveying pot:
980 mm
Weight of conveying pot:
87 kg
Weight of rotary compressor including carrier element:
188 kg
Total weight:
275 kg
Show more

Equipment / Accessories

Equipment

SILOMAT trans plus 105 - portable
400 V, 3 Ph, 50 Hz
Part no. :
00124365
Basic equipment :
Conveying pot – rollable
Suitable for container/silo outlet flange
Ø 250 mm
Capacity: 55 litres / weight: 87 kg / height: 980 mm
Shut-off flap with actuator and hand wheel
Easily replaceable gaskets
Fluidiser membrane increases and secures the material flow, the tank is emptied almost completely
Bypass manually controllable for stiff material and longer conveying distances
Note: Affects the conveying output
Transport rollers for easy handling
Rotary compressor –
Portable supporting frame
Rotary compressor with 5.5 kW
Air quantity: 105 Nm³/h
Operation-hour counter
Compressor as dry running water meter,
no oil change required
High machine running times with high level of operating safety
Easy replacement of wear parts -
also on site
Crane transport lugs and fold-out carrying handles
Show more
SILOMAT trans plus 145 - portable
400 V, 3 Ph, 50 Hz
Part no. :
00689524
Basic equipment :
Conveying pot – rollable
Suitable for container/silo outlet flange
Ø 250 mm
Capacity: 55 litres / weight: 87 kg / height: 980 mm
Shut-off flap with actuator and hand wheel
Easily replaceable gaskets
Fluidiser membrane increases and secures the material flow, the tank is emptied almost completely
Bypass manually controllable for stiff material and longer conveying distances
Note: Affects the conveying output
Transport rollers for easy handling
Rotary compressor –
Portable supporting frame
Rotary compressor with 7.5 kW
Air quantity: 145 Nm³/h
Operation-hour counter
Compressor as dry running water meter,
no oil change required
High machine running times with high level of operating safety
Easy replacement of wear parts -
also on site
Crane transport lugs and fold-out carrying handles
Show more
SILOMAT trans plus 105 - rollable
400 V, 3 Ph, 50 Hz
Part no. :
00124366
Basic equipment :
Conveying pot – rollable
Suitable for container/silo outlet flange
Ø 250 mm
Capacity: 55 litres / weight: 87 kg / height: 980 mm
Shut-off flap with actuator and hand wheel
Easily replaceable gaskets
Fluidiser membrane increases and secures the material flow, the tank is emptied almost completely
Bypass manually controllable for stiff material and longer conveying distances
Note: Affects the conveying output
Transport rollers for easy handling
Rotary compressor –
Rollable supporting frame
Rotary compressor with 5.5 kW
Air quantity: 105 Nm³/h
Operation-hour counter
Compressor as dry running water meter,
no oil change required
High machine running times with high level of operating safety
Easy replacement of wear parts -
also on site
Crane transport lugs and fold-out carrying handles
Transport rollers for easy handling
Show more
SILOMAT trans plus 145 - rollable
400 V, 3 Ph, 50 Hz
Part no. :
00124358
Basic equipment :
Conveying pot – rollable
Suitable for container/silo outlet flange
Ø 250 mm
Capacity: 55 litres / weight: 87 kg / height: 980 mm
Shut-off flap with actuator and hand wheel
Easily replaceable gaskets
Fluidiser membrane increases and secures the material flow, the tank is emptied almost completely
Bypass manually controllable for stiff material and longer conveying distances
Note: Affects the conveying output
Transport rollers for easy handling
Rotary compressor –
Rollable supporting frame
Rotary compressor with 7.5 kW
Air quantity: 145 Nm³/h
Operation-hour counter
Compressor as dry running water meter,
no oil change required
High machine running times with high level of operating safety
Easy replacement of wear parts -
also on site
Crane transport lugs and fold-out carrying handles
Transport rollers for easy handling
Show more
