ZP 3 L Powerful pump

Delivery pumps perform the material transport to the processing site at the construction site. PFT delivery pumps are suitable for processing all pumpable lime/cement-based ready-mix dry mortars as well as wet products, paste-like materials and liquid media.
With the ZP 3-family, PFT satisfies a wide range of requirements. The ZP 3 L is a universal pump with vario gearbox for infinitely variable pump capacity. The conveying output is also steplessly variable. The integrated remote pressure control allows machine operation on/off via the air supply on the spraying gun.

  • Mixing quality
  • Open system
  • Hose length

Details

  • Integrated remote pressure control – enables a machine operation On/Off via the air supply on the spraying gun
  • Pump capacity can be easily adjusted with a vario gearbox
  • Adjustable conveying output by changing the pump (L or R pump)
  • Cleaning port in material hopper
  • Solid rubber wheels with steel rims
  • Doubled gear gasket with inspection opening
  • Optional: vibrating screen
  • Pump shaft mixes material again – no separation in the pump
  • Robust sheet metal protects the motor and the gear box
  • Hoppers optimised for draining - hardly any residual amounts
  • Integrated compulsory mixer (only with ZP 3 L MULTIMIX vario)
    Drive: 2.2 kW, 56 rpm
  • Crane eyes

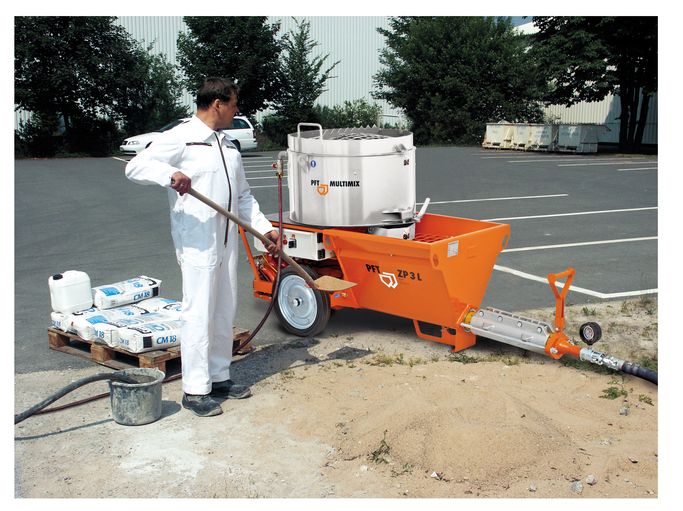

The delivery pump for individual building site mixtures on site.
The mixed plaster or masonry mortar is pumped directly to the application site.
The conveying output can be adapted to the material requirements with ease.

  • Building site mixtures
  • Lime-cement render
  • Clay plaster
  • Concrete restoration
  • Masonry mortar
  • Fire protection mortar
  • Adhesive mortar
  • Frame grouting mortar
  • Floor filling compound
  • Floor screed
  • Thin screed

Downloads

Please find further downloads and languages here.

Description
Edition
Document type
DS09_en PFT ZP 3 L MULTIMIX Oct. 2022 Brochure
PDF
BAL134_en PFT ZP 3 L MULTIMIX Mar. 2017 Operating instructions
PDF

Technical data

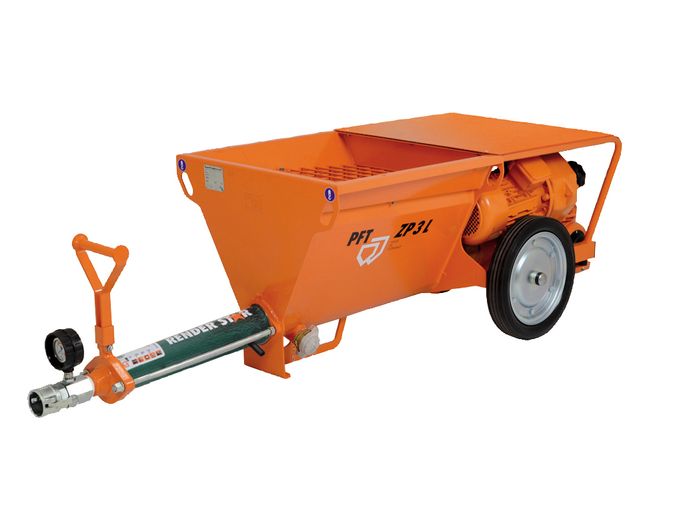

  • ZP 3 L vario<br>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 L vario
    400 V, 3 Ph, 50 Hz

    Part no. :
    00451331
    Performance :

    Conveying output, max.:
    10 – 40 l/min

    Conveying distance up to:
    60 m in DN50

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 5.5 kW

    Drive:
    Pump motor: 5.5 kW, 70 – 260 rpm
    Mixer motor: not included

    Material hopper:
    Sheet

    Grout outlet with mortar pressure gauge:
    DN50 female part

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Pump capacity can be easily adjusted with a vario gearbox

    Dimensions :

    Filling height:
    630 mm

    Hopper volume:
    130 litres

    Length/Width/Height:
    2,200/860/745 mm

    Total weight:
    292 kg

    Basic equipment package :

    Pump unit:
    RENDER STAR · 40 l/min · 20 bar

    Mortar hose:
    RONDO DN35 (50 male part | 35 female part) – 10 m
    RONDO DN35 - 10 m

    Reduction in the coupling:
    Not included

    Air compressor:
    COMP M-250-V5 handy, 400 V, 3 Ph,
    50 Hz, 0.9 kW, 250 l/min – max. 4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    DN35 M20 Geka

    Connection cable:
    Not included

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m
    DN12 (1/2") Geka | Geka – 11 m

    Show more
  • ZP 3 L MULTIMIX vario<br/>400 V, 3 Ph, 50 Hz  Produktbild

    ZP 3 L MULTIMIX vario
    400 V, 3 Ph, 50 Hz

    Part no. :
    00280802
    Performance :

    Conveying output, max.:
    10 – 40 l/min

    Conveying distance up to:
    60 m in DN50

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 5.5 kW

    Drive:
    Pump motor: 5.5 kW, 70 – 260 rpm
    Mixer motor: 2.2 kW, 56 rpm

    Material hopper:
    Sheet

    Grout outlet with mortar pressure gauge:
    DN50 female part

    Wheels:
    2 rollers

    Water connection:
    Geka DN19 (3/4") – 2.5 bar working pressure

    Operation and control:
    Pump capacity can be easily adjusted with a vario gearbox

    Dimensions :

    Filling height:
    630 mm

    Hopper volume:
    130 litres

    Length/Width/Height:
    2,200/860/1,120 mm

    Total weight:
    366 kg

    Basic equipment package :

    Pump unit:
    RENDER STAR · 40 l/min · 20 bar

    Mortar hose:
    RONDO DN35 (50 male part | 35 female part) – 10 m
    RONDO DN35 - 10 m

    Reduction in the coupling:
    35 female part | 50 male part

    Air compressor:
    COMP M-250-V5 handy, 400 V, 3 Ph,
    50 Hz, 0.9 kW, 250 l/min – max. 4 bar with pressure switch-off

    Spraying gun/fine plastering device:
    DN35 M20 Geka

    Connection cable:
    Not included

    Water hose/air hose:
    DN12 (1/2") Ewo | Geka – 11 m
    DN12 (1/2") Geka | Geka – 11 m

    Show more

Equipment / Accessories

Equipment

  • ZP 3 L vario<br>400 V, 3 Ph, 50 Hz Produktbild

    ZP 3 L vario
    400 V, 3 Ph, 50 Hz

    Part no. :
    00451331
    Basic equipment :

    • Drive motor 5.5 kW, 70 – 260 rpm
    • Integrated remote pressure control – enables a machine operation On/Off via the air supply on the spraying gun
    • Pump capacity via vario gearbox
      continuously adjustable
    • Adjustable conveying output by changing the pump (L or R pump)
    • Cleaning port in material hopper
    • Solid rubber wheels with steel rims
    • Doubled gear gasket with inspection opening
    • Mortar pressure gauge DN50 female part
    • Hopper volume 130 litres
    • Pump shaft mixes up the material again - no demixing in the pump
    • Filling height 630 mm
    • Robust sheet metal protects the motor and the gear box
    • Hopper optimised for emptying -
      Hardly any residual quantities

    Basic equipment package :

    • Rotor RENDER STAR / Stator RENDER STAR
      Pump capacity: 40 l/min, 20 bar,
      up to 60 m conveying distance in DN50
    • RONDO DN35 (50 male part | 35 female part) – 10 m
    • RONDO DN35 hydraulic connection
      Male part | Female part – 10 m
    • Air hose DN12 (1/2")
      Ewo male part | Geka – 11 m
    • Water hose/air hose DN12 (1/2")
      Geka I Geka – 11 m
    • Spraying gun DN35 M20 Geka
    • COMP M-250-V5 handy,
      400 V, 3 Ph, 50 Hz, 0.9 kW, 250 l/min
      max. 4 bar with pressure switch-off

    Show more
  • ZP 3 L MULTIMIX vario<br/>400 V, 3 Ph, 50 Hz   Produktbild

    ZP 3 L MULTIMIX vario
    400 V, 3 Ph, 50 Hz

    Part no. :
    00280802
    Basic equipment :

    • Drive motor 5.5 kW, 70 – 260 rpm
    • Integrated pug mill mixer
    • Mixer with overflow edge
    • Mixer motor 2.2 kW, 56 rpm
    • Water connection DN19 (3/4")
    • Integrated remote pressure control – enables a machine operation On/Off via the air supply on the spraying gun
    • Pump capacity via vario gearbox
      continuously adjustable
    • Adjustable conveying output by changing the pump (L or R pump)
    • Cleaning port in material hopper
    • Solid rubber wheels with steel rims
    • Doubled gear gasket with inspection opening
    • Mortar pressure gauge DN50 female part
    • Hopper volume 130 litres
    • Pump shaft mixes up the material again - no demixing in the pump
    • Filling height 630 mm
    • Robust sheet metal protects the motor and the gear box
    • Hopper optimised for emptying -
      Hardly any residual quantities

    Basic equipment package :

    • Rotor RENDER STAR / Stator RENDER STAR
      Pump capacity: 40 l/min, 20 bar,
      up to 60 m conveying distance in DN50
    • RONDO DN35 (50 male part | 35 female part) – 10 m
    • RONDO DN35 hydraulic connection
      Male part | Female part – 10 m
    • Adapter coupling 35 female part | 50 male part
    • Air hose DN12 (1/2")
      Ewo male part | Geka – 11 m
    • Water hose/air hose DN12 (1/2")
      Geka I Geka – 11 m
    • Spraying gun DN35 M20 Geka
    • COMP M-250-V5 handy
      400 V, 3 Ph, 50 Hz, 0.9 kW, 250 l/min
      max. 4 bar with pressure switch-off

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423920

Description

Extension cable 5 x 4 mm², RED 5-32 A – 25 m (400 V/3 Ph)

20423920 Bild
Part no.

20423900

Description

Extension cable 5 x 4 mm², RED 5-32 A – 50 m (400 V/3 Ph)

20423900 Bild
Part no.

00105633

Description

Extension cable 5 x 6 mm², RED 5-32 A – 25 m (400 V/3 Ph)

00105633 Bild

Useful extras

Part no.
Description

20456929

Remote control cable with switch – 25 m

20456929 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
00255376

Vibrating screen for retrofitting for ZP 3 L MULTIMIX

00255376 Bild
00478212

Assembly aid for R-pump

00478212 Bild

Floor filling compound

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20456915

Description

Remote control cable with switch – 25 m on cable reel

20456915 Bild

Adhesive mortar

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20200330

Description

Adapter coupling DN35 male part | DN25 male part NW24

20200330 Bild
Part no.

00088049

Description

Remote control cable extension – 16 m
Recommended in ZARGOMAT pro and JETSET pro

00088049 Bild
Part no.

00420058

Description

Spraying gun ZARGOMAT pro DN25-360°

00420058 Bild
Part no.

00418975

Description

Spraying gun JETSET pro DN25 Ewo

00418975 Bild

Clay plaster

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

00148384

Description

Spraying gun DN35 M20 Geka

00148384 Bild
Part no.

00414337

Description

Compressor COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz

00414337 Bild

Concrete restoration

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20196300

Description

Spraying gun reprofiler DN35 R12 Geka

20196300 Bild
Part no.

20456915

Description

Remote control cable with switch – 25 m on cable reel

20456915 Bild
Part no.

HINWEIS

Description

Construction site compressor is required

HINWEIS Bild

Fire protection mortar for filling

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20200330

Description

Adapter coupling DN35 male part | DN25 male part NW24

20200330 Bild
Part no.

00088049

Description

Remote control cable extension – 16 m
Recommended in ZARGOMAT pro and JETSET pro

00088049 Bild
Part no.

00420058

Description

Spraying gun ZARGOMAT pro DN25-360°

00420058 Bild
Part no.

00418975

Description

Spraying gun JETSET pro DN25 Ewo

00418975 Bild

Floor screed 35 l/min

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20456915

Description

Remote control cable with switch – 25 m on cable reel

20456915 Bild

Frame grouting mortar

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20200330

Description

Adapter coupling DN35 male part | DN25 male part NW24

20200330 Bild
Part no.

00088049

Description

Remote control cable extension – 16 m
Recommended in ZARGOMAT pro and JETSET pro

00088049 Bild
Part no.

00420058

Description

Spraying gun ZARGOMAT pro DN25-360°

00420058 Bild
Part no.

00418975

Description

Spraying gun JETSET pro DN25 Ewo

00418975 Bild

Grouting mortar up to 6 mm

Part no.
Description


Lime-cement render < 3 mm

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

00148384

Description

Spraying gun DN35 M20 Geka

00148384 Bild
Part no.

00414337

Description

Compressor COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz

00414337 Bild

Lime-cement render > 3 mm

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

00148384

Description

Spraying gun DN35 M20 Geka

00148384 Bild
Part no.

00414337

Description

Compressor COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz

00414337 Bild

Lime-cement render, Building site mixture, exterior plastering

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

00148384

Description

Spraying gun DN35 M20 Geka

00148384 Bild
Part no.

00414337

Description

Compressor COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz

00414337 Bild

Lime-cement render, Building site mixture, interior plastering

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

00148384

Description

Spraying gun DN35 M20 Geka

00148384 Bild
Part no.

00414337

Description

Compressor COMP M-250-V5 handy, 400 V, 3 Ph, 50 Hz

00414337 Bild

Thin screed

Part no.
Description

Part no.

00536758

Description

Rotor RENDER STAR

00536758 Bild
Part no.

00536757

Description

Stator RENDER STAR

00536757 Bild
Part no.

00549245

Description

Pump shaft for L-pump ZP 3 L

00549245 Bild
Part no.

00021104

Description

RONDO DN35 - 10 m

00021104 Bild
Part no.

20456915

Description

Remote control cable with switch – 25 m on cable reel

20456915 Bild

Video

Dieser Inhalt ist aufgrund Ihrer Cookie-Auswahl nicht anzeigbar.

Similar Products
