BOLERO Perfect for the intensive mixing of materials

PFT BOLERO
  • PFT construction site BOLERO

The handy PFT BOLERO is a combined mixing, pumping and spraying machine for small building sites. A standard power socket is sufficient for operation. With anticlockwise running of the mixing shaft the material is mixed continuously. When rotating clockwise, the delivery pump is switched on. The PFT BOLERO demonstrates its particular strength in materials with intensive mixing that are processed discontinuously. These include special types of mortar, bentonite, textured and acoustic plaster, levelling compounds and flowing fillers. The BOLERO is equipped with a 1.9 or 2.2 kW gear motor with infinitely variable speed control, has a conveying output of up to 12 litres / min and delivers a working pressure of up to max. 25 bar.

  • Mixing quality
  • Closed system
  • 42V control voltage
  • 230V standard power socket

Details

Highlights

  • Two fixed speed stages
  • Combined mixing, pumping and spraying machine with anti-clockwise or clockwise rotation
  • Prescribed mixing and grout soaking times can be precisely maintained
  • Practically rules out mixing errors
  • Integrated mortar pressure gauge
  • Large wheels suitable for construction site
  • Cleaning port on material hopper
  • Flexible mixing intensity
  • Frequency converter for infinitely variable speed control and torque amplification(only with BOLERO FC-230V)
  • Powerful and reliable operation via standard power socket

This smart solution supports infinite mixing; in this way, materials with a long mixing time in particular can be processed safely, and with perfect quality.

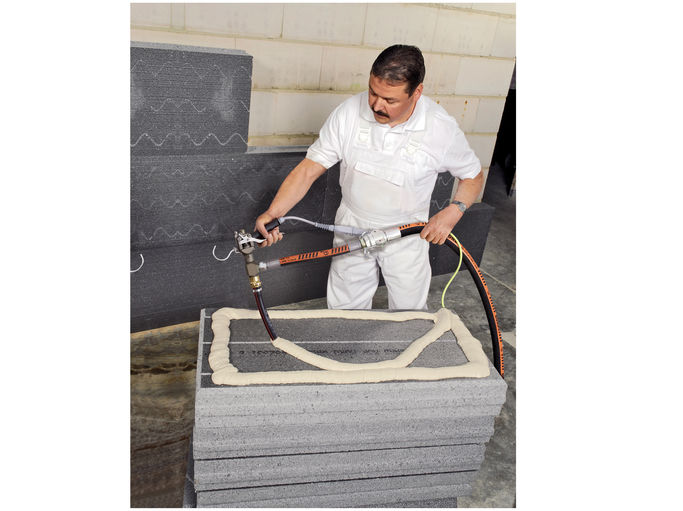

  • Frame, anchor and adhesive mortar
  • Fire protection mortar
  • Multi-component mortar
  • Bentonite
  • Textured and acoustic plaster
  • Levelling compounds
  • Liquid filler

Downloads

Please find further downloads and languages here.

Description Edition Document type
DS38_en PFT BOLERO FC-230V Oct. 2022 Brochure
PDF
BAL30_en PFT BOLERO 230 V Feb. 2024 Operating instructions
PDF
BAL31_en PFT BOLERO 400 V Feb. 2024 Operating instructions
PDF

Technical data

  • BOLERO FC-230V<br>230 V, 1 Ph, 50 Hz Produktbild

    BOLERO FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00245337
    Performance :

    Conveying distance up to:
    20 m in DN25
    30 m in DN35

    Basic equipment :

    Connection value:
    230 V, 1 Ph, 50 Hz, 2.2 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 2.2 kW, 181 rpm

    Agitator:
    Agitator BOLERO centro

    Grout outlet with mortar pressure gauge
    DN35 female part

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Start/stop and continuously variable speed control

    Dimensions :

    Filling height:
    950 mm

    Hopper volume:
    68 litres ~ 2.2 sacks (at 30 kg)

    Length/Width/Height:
    800/700/1,500 mm

    Total weight:
    112 kg

    Basic equipment package :

    Pump unit:
    D 4-2 · 9 l/min · 20 bar

    Mortar hose:
    Not included

    External vibrator:
    Not included

    Water pump for pressure boosting:
    Not included

    Water flow meter:
    Not included

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    Not included

    Connection cable:
    Not included

    Water hose/air hose:
    Not included

    Show more
  • BOLERO<br>400 V, 3 Ph, 50 Hz Produktbild

    BOLERO
    400 V, 3 Ph, 50 Hz

    Part no. :
    00231213
    Performance :

    Conveying distance up to:
    20 m in DN25
    30 m in DN35

    Basic equipment :

    Connection value:
    400 V, 3 Ph, 50 Hz, 1.9 kW
    Control voltage: 42 V

    Drive:
    Pump motor: 1.9 kW, 181 rpm

    Agitator:
    Agitator BOLERO centro

    Grout outlet with mortar pressure gauge
    DN35 female part

    Wheels:
    2 rollers

    Water connection:
    Not included

    Operation and control:
    Start/Stop

    Dimensions :

    Filling height:
    950 mm

    Hopper volume:
    68 litres ~ 2.2 sacks (at 30 kg)

    Length/Width/Height:
    800/700/1,500 mm

    Total weight:
    112 kg

    Basic equipment package :

    Pump unit:
    D 4-2 · 10 l/min · 20 bar

    Mortar hose:
    Not included

    External vibrator:
    Not included

    Water pump for pressure boosting:
    Not included

    Water flow meter:
    Not included

    Air compressor:
    Not included

    Spraying gun/fine plastering device:
    Not included

    Connection cable:
    3 x 2.5 mm²
    BLU 3-16 A | BLA 2-16 A - 25 m

    Water hose/air hose:
    Not included

    Show more

Equipment / Accessories

Equipment

  • BOLERO FC-230V<br>230 V, 1 Ph, 50 Hz Produktbild

    BOLERO FC-230V
    230 V, 1 Ph, 50 Hz

    Part no. :
    00245337
    Basic equipment :

    • Pump drive 2.2 kW, 170 rpm
    • Material hopper,
      Capacity 68 litres ~ 2.2 sacks (30 kg)
    • Filling height adjustable
    • Suitable for buckets or bagged material
    • Conical material hopper for optimum material flow
    • Cleaning port on material hopper
    • 42 volts control voltage for maximum operational reliability
    • Ready for remote control cable
    • Grout outlet DN35 female part with mortar pressure gauge
    • Suction and pressure flanges supports the use of D-pump
    • Tools include basic accessories
    • Powerful and reliable operation via standard power socket
    • Small, light, handy, compact and rollable
    • Flexible mixing intensity
    • Separation of mixing and pumping functions
    • Frequency converter (FC) for infinitely variable speed control and
    • torque amplification
    • Connections in the control box:
      H 4

    Basic equipment package :

    • Rotor D 4-2 / Stator D 4-2
      Pump capacity: 9 l/min, 20 bar,
      up to 20 m conveying distance in DN25
      up to 30 m conveying distance in DN35
    • Remote control cable with switch – 0.35 m
    • Extension for remote control cable - 25 m

    Show more
  • BOLERO<br>400 V, 3 Ph, 50 Hz Produktbild

    BOLERO
    400 V, 3 Ph, 50 Hz

    Part no. :
    00231213
    Basic equipment :

    • Pump drive 1.9 kW, 181 rpm
    • Material hopper,
      Capacity 68 litres ~ 2.2 sacks (30 kg)
    • Filling height adjustable
    • Suitable for buckets or bagged material
    • Conical material hopper for optimum material flow
    • Cleaning port on material hopper
    • 42 volts control voltage for maximum operational reliability
    • Ready for remote control cable
    • Grout outlet DN35 female part with mortar pressure gauge
    • Suction and pressure flanges supports the use of D-pump
    • Tools include basic accessories
    • Small, light, handy, compact and rollable
    • Flexible mixing intensity
    • Separation of mixing and pumping functions
    • Two mixing and pumping stages configurable via switch
    • Agitator BOLERO centro
    • Connections in the control box:
      H 4

    Basic equipment package :

    • Rotor D 4-2 / Stator D 4-2
      Pump capacity: 10 l/min, 20 bar,
      up to 20 m conveying distance in DN25
      up to 30 m conveying distance in DN35
    • Remote control cable with switch – 0.35 m
    • Extension cable 3 x 2.5 mm²
      BLU 3-16 A | BLA 2-16 A - 25 m
    • Extension for remote control cable - 25 m

    Show more

Necessary accessories for operation

Part no.
Description

Part no.

20423360

Description

Extension cable 5 x 2.5 mm², RED 5-16 A – 25 m (400 V/3 Ph)

20423360 Bild
Part no.

20423350

Description

Extension cable 5 x 2.5 mm², RED 5-16 A – 50 m (400 V/3 Ph)

20423350 Bild
Part no.

20423420

Description

Extension cable 3 x 2.5 mm², BLU 2-16 A – 25 m (230 V/1 Ph)

20423420 Bild
Part no.

00021103

Description

RONDO DN25 – 5 m

00021103 Bild
Part no.

00111799

Description

RONDO DN25 – 7.5 m

00111799 Bild
Part no.

00021100

Description

RONDO DN25 - 10 m

00021100 Bild
Part no.

00021101

Description

RONDO DN25 – 15 m

00021101 Bild
Part no.

00021102

Description

RONDO DN25 – 20 m

00021102 Bild
Part no.

20211600

Description

Air hose DN12 (1/2") Ewo | Geka – 11 m

20211600 Bild
Part no.

20211601

Description

Air hose DN12 (1/2") Ewo | Geka – 15 m

20211601 Bild
Part no.

00077240

Description

Air hose DN9 (3/8") Ewo | Ewo - 5 m

00077240 Bild
Part no.

00008521

Description

Air hose DN9 (3/8") Ewo | Ewo - 16 m

00008521 Bild

Useful extras

Part no.
Description

20456929

Remote control cable with switch – 25 m

20456929 Bild
20456916

Remote control cable with switch – 50 m on cable reel

20456916 Bild
20456931

Extension for remote control cable - 25 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456931 Bild
20456934

Extension for remote control cable – 50 m
Note: For ZARGOMAT pro, JETSET pro, remote control cable with switch

20456934 Bild
00420058

ZARGOMAT pro DN25-360°

00420058 Bild
00418975

JETSET pro DN25 Ewo

00418975 Bild
00232106

Finishing coat spraying set

00232106 Bild
00493686

Water pump as suction pump
AV 1000 standalone, 230 V, 1 Ph, 50 Hz, 0.6 kW
with integrated pressure switch-off and flow meter
Note: Stand-alone and independent of machine control,
Suction strainer with mesh filter required

00493686 Bild
00136619

Suction strainer with filter screen

00136619 Bild
00414866

COMP M-250-X0 handy, 400 V, 3 Ph, 50 Hz, 0.9 kW
250 l/min - max. 4 bar with pressure switch-off

00414866 Bild
00196221

COMP P-200, 230 V, 1 Ph, 50 Hz, 0.52 kW
200 l/min - max. 3.4 bar with pressure switch-off

00196221 Bild
00746490

COMP P-320, 230 V, 1 Ph, 50 Hz
320 l/h – max. 10 bar with pressure switch-off

00746490 Bild
20211100

Water hose DN12 (1/2") Geka | Geka – 5 m

20211100 Bild
20215700

Spray nozzle DN19 (3/4") Geka

20215700 Bild
00113856

Purging hose DN10 Geka – 11 m
For easy cleaning of the material hoses

00113856 Bild
20216802

Pressure tester 0 - 100 bar with DN25 female part

20216802 Bild
20104301

Consistency checking tube DN25 female part

20104301 Bild
